Eye Bolts with Shoulder Forged Carbon Steel Eyebolt Choose Size Made In USA LST
$6.05

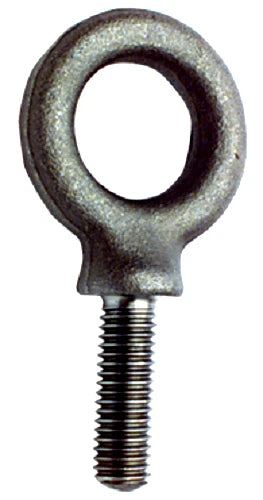

- Eye Bolts with Shoulder Forged Carbon Steel
- Please Select Eye Bolt Size: 1/4" to 1"
- Style: Shoulder
-
Size - Thread Length - Eye I.D. - Eye O.D. - Safe Workload
- 1/4-20 1" 3/4" 1-3/16" 500 lbs
- 5/16-18 1-1/8" 7/8" 1-7/16" 900 lbs
- 3/8-16 - 1-1/4" - 1" 1-21/32" 1300 lbs
- 7/16-14 - 1-3/8" - 1-1/16" 1-27/32" 1800 lbs
- 1/2-13 - 1-1/2" - 1-3/16" 2-1/16" 2400 lbs
- 9/16-12 - 1-5/8" - 1-9/32" 2-9/32" 3000 lbs
- 5/8-11 - 1-3/4" - 1-3/8" 2-1/2" 4000 lbs
- 3/4-10 2" 1-1/2" 2-13/16" 5000 lbs
- 7/8-9 2-1/4" 1-11/16" 3-1/4" 7000 lbs
- 1-8 2-1/2" 1-13/16" 3-9/16" 9000 lbs
- Made In U.S.A.
